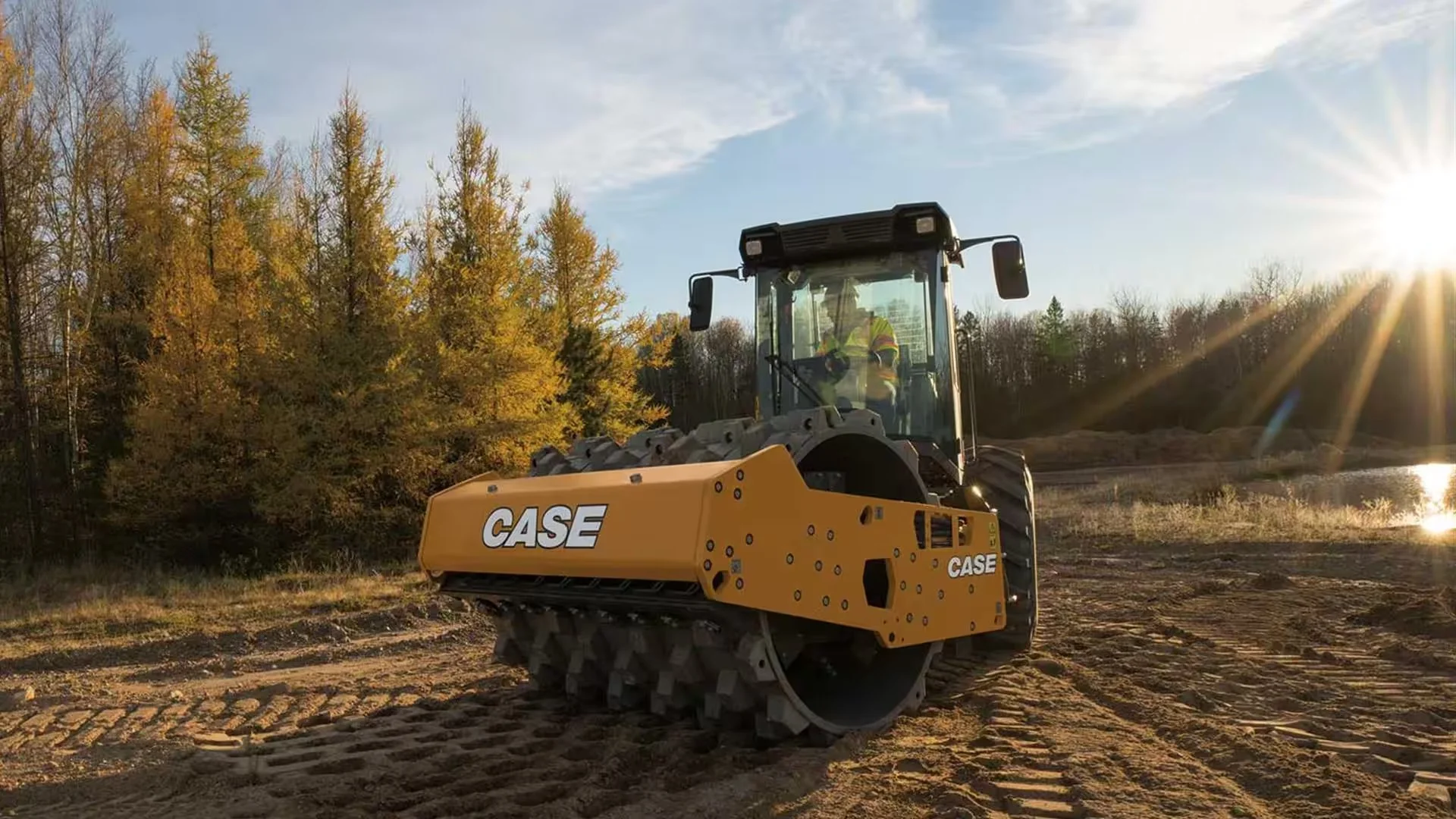

SOIL COMPACTOR SV217E
Construction CASE
The largest and most powerful soil compactor in the CASE lineup, the 36,500-pound SV217E rolls with up to 74,861 pounds of centrifugal force and standard dual amplitudes and dual frequencies that make it both extremely strong and easy to dial in to specific compaction requirements. It also comes standard with auto vibration control, and an oscillating articulated roller joint that ensures consistent drum-to-ground contact across varying terrain. A large cab with intuitive controls and a steering wheel-integrated display provides excellent visibility and control — putting you firmly in control of this extremely strong and versatile roller.
Greater Compaction Power and Precision
The CASE SV217E is all about compacting each lift faster and with fewer total passes, and the machine does that through a combination of brute force and intelligent control. Centrifugal forces range from 49,907 pounds to 74,861 pounds, and standard dual amplitudes (low: 0.037 inches; high: 0.087 inches) and dual frequencies (low: 1,680 vibrations per minute at 28 hertz; high: 2,100 vibrations per minute at 35 hertz) allow the operator dial in compaction performance to each unique lift. Optional intelligent compaction solutions further serve to increase productivity and compaction quality.
Take the Hill
The CASE SV217E features a low center of gravity thanks to an axle-free design that allows the engine to sit lower in the frame. When matched with the Automatic Traction Control and HX drive propulsion system (standard on padfoot models; optional on smooth drum rollers), the SV217E can compact effectively on grades up to 58 percent.
Sleek and Agile
The axle-free design and the lower engine placement allow for a low sloping rear hood that results in a sleek, modern design and excellent rear visibility; while the machine’s hydrostatic drive, four working speeds, and a tight turning radius provide dynamic performance even for a large soil compactor.
Comfortable and Modern Working Environment
Available in both an open ROPS configuration as well as an optional enclosed cab (pressurized with heat, ventilation, air conditioning and radio), CASE E Series soil compactors feature a spacious, comfortable and intuitive operator environment with an adjustable seat that swivels up to 80 degrees to provide excellent visibility to the entire working area. An LED display integrated and fixed within the steering wheel puts all critical operating information directly in front of the operator and at their fingertips, and further improves visibility by eliminating the need for additional dashboards in the machine.
More Consistent Drum-to-Ground Contact
Compaction performance is further enhanced with an oscillating articulated roller joint that maintains consistent drum-to-ground contact, and an updated drum design that reduces drift and maintains constant compaction throughout each rotation.
Groundline Serviceability for Simplicity
CASE E Series rollers are designed for groundline serviceability with easy access at ground level to all fluid ports, drains, service checkpoints and filters — and the cab on the SV217E can be tilted forward easily for access to all primary hydraulic components of the machine. Each model is also available with optional CASE SiteWatch telematics to further enhance fleet management operations.
STANDARD EQUIPMENT
STANDARD EQUIPMENT – GENERAL
- ROPS and FOPS Protection
- Hydrostatic Drive for Both Drum and Wheels
- Steel Drum Scrapers
- Diamond Tread Tires
- Interwheel Differential Lock
- Articulated Chassis
- Front and Rear Tow Points
- 4-Point Lift and Tie-Down Provision
- Fan Guard
- Backup Alarm
- Halogen Work Lights, 2F/2R
- Master Disconnect Switch
- Spring Applied, Hydraulic Release Parking Brake
- 3 Working Speeds/1 Transport Speed
- Spin-on Fuel, Engine Oil and Hydraulic Filters
- Spring-Assist Tilting for Engine Hood
OPERATOR ENVIRONMENT
- Lockable Tool Box
- 3-Inch Retractable Seat Belt
- Cup Holder
- Single Lever Speed/Direction Control
- Emergency Stop Button
- Steering Wheel Embedded Monitor
INSTRUMENT PANEL
- Steering Wheel Spinner Knob
- Horn
VIBRATION SYSTEM
- Auto Vibration Control
- Dual Amplitude Vibration
- Dual Frequency Vibration
OPTIONAL EQUIPMENT
OPTIONAL EQUIPMENT – GENERAL
- Automatic Traction Control (ATC) with HX Drive Propulsion (Standard on Padfoot Models)
- Leveling Blade
- Padfoot Shell Kit w/Scrapers
- Pressurized Cab with Heat, Ventilation, Air Conditioning and Radio Ready — Antenna and 2 Speakers/No Radio
- Engine Filter Pre-Cleaner
- ACI Eco – Analog Compaction Indicator
- ACE Force Intelligent Compaction (Cab Only)
- Extra Front Work Lights (Smooth Drum Only)
- Traction Tread Tires
- Rotating Beacon
- Backup Camera
- CASE SiteWatch Telematics – Includes Hardware and a Three-Year Advanced Data Subscription
WARRANTY
Base & Extended Warranty Coverage
1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
