CRAWLER DOZER 650M
Construction CASE

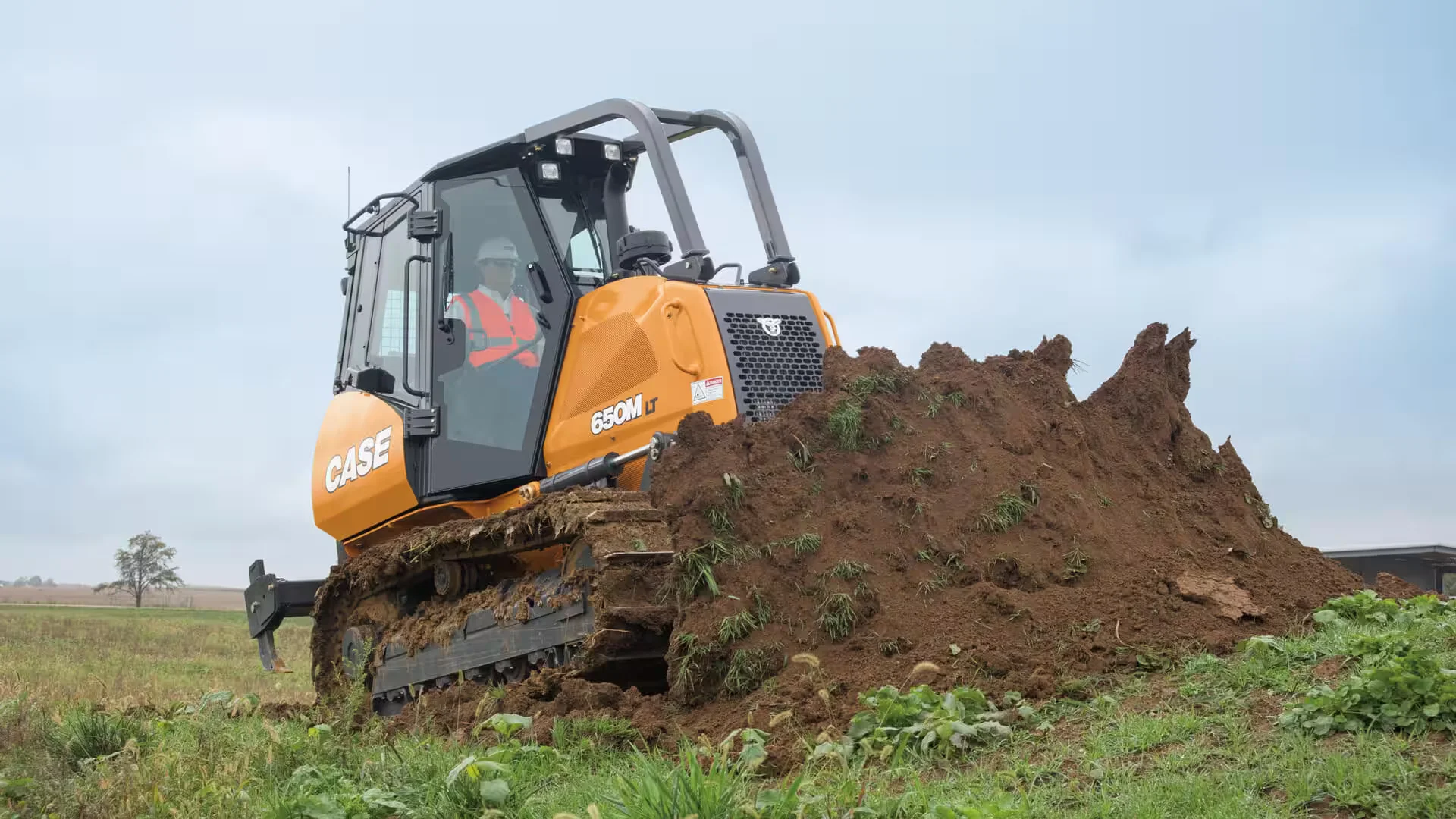

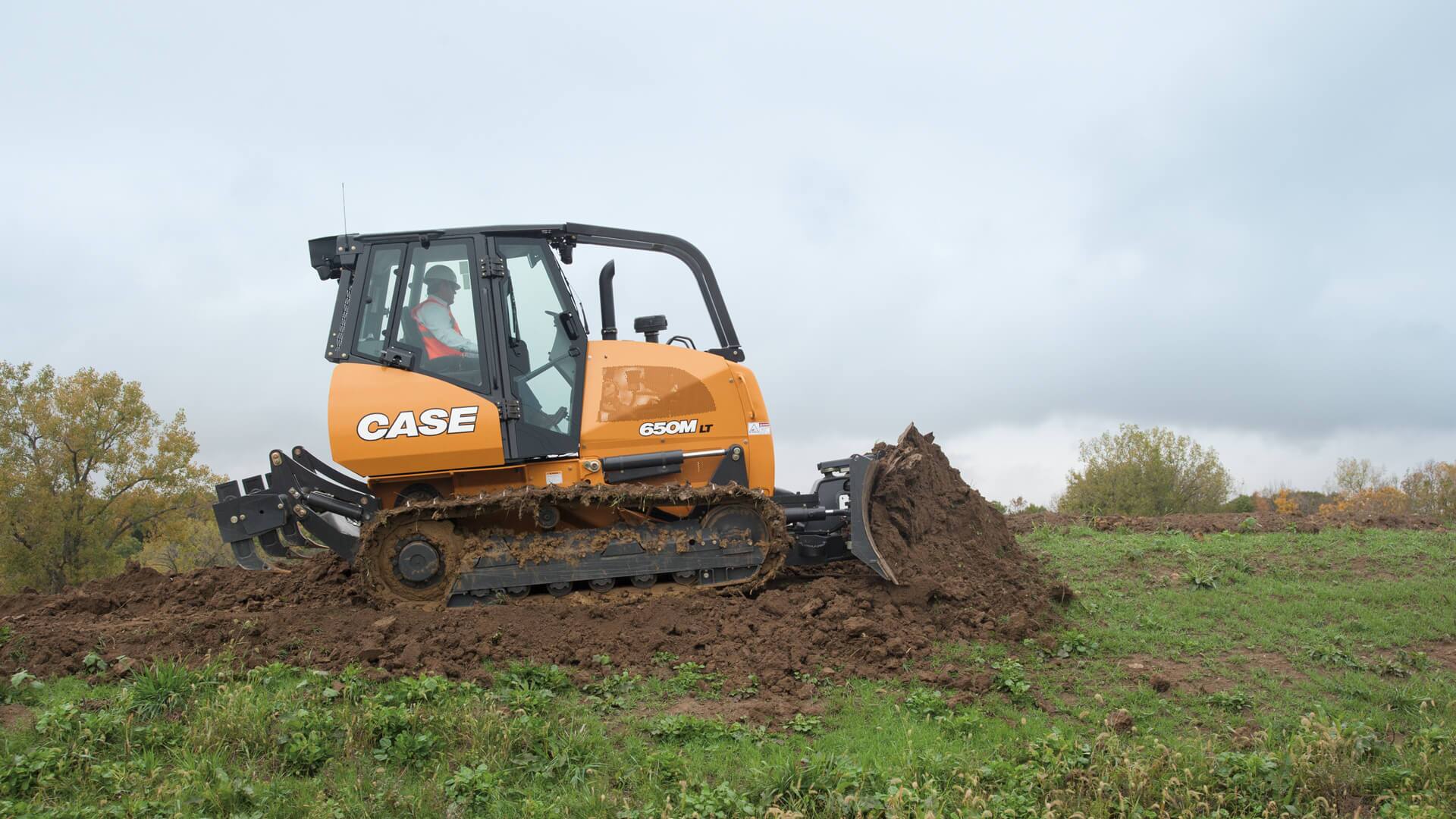

The CASE 650M features all the power and performance of the CASE M Series dozers — in a practical and efficient footprint ideal for residential construction, and any jobsite/application where space and access are at a premium. Excellent tractive effort and pushing power is matched with dynamic and efficient controls — and it’s also compatible with a full range of machine control/grade control systems. The 650M is the ideal entry-level dozer or agile fine grading solution for jobsites of all sizes.
Features
Details
Data sheets
Features
Power and Productivity
More than 39,000 pounds of drawbar pull in a machine that can easily be transported around — often without a permit. Three track configurations. Two track gauges. Four different blade sizes. Powerful hydrostatic performance. All providing operators with extreme power and flexibility in an easy to own and operate dozer.
Total Control for the Operator
The 650M allows operators to adjust shuttle (forward-to-reverse) and steering sensitivity to Smooth, Moderate or Aggressive to match conditions on the site. And an advanced load monitoring system automatically reduces track speed (increasing torque) with a heavier load on the blade, and increases track speed (reducing torque) with a lighter load on the blade, ensuring that the machine is working at optimal power and efficiency at all times.
Operator Comfort and Jobsite Visibility
CASE M Series dozers provide some of the industry’s best sight lines down to the blade, the tracks and the worksite with excellent visibility and lots of glass from floor to ceiling. A true positive-pressure cab with advanced sealing helps keep out dirt, dust and noise — creating a working environment with one of the industry’s lowest sound ratings. And an “isolated” design further reduces cab vibration and provides a smoother ride.
Ease of Maintenance and Service
The 650M features easy access and grouped service points, as well as a maintenance-free Tier 4 Final emissions solution that requires no diesel particulate filter, no regeneration and no fluids. The enhanced CASE SiteWatch™ telematics provides insight into machine performance, maintenance intervals and more — allowing you to stay ahead of service and achieve optimal uptime.
Protected by CASE ProCare
Each CASE M Series dozer provides peace of mind and controlled owning and operating expenses with ProCare:
- Three-year, 3,000-hour full-machine factory warranty
- Three-year, 2,000-hour planned maintenance contract
- Three-year Advanced CASE SiteWatch™ telematics subscription
Details
STANDARD EQUIPMENT
Operator Environment
- Optional ROPS cab
- Single lever control for speed, steering and direction
- Forward/reverse speed ratio selector
- Adjustable armrests
- Foot rests
- Retractable seat belt, 2 in (51 mm)
- Rear view mirror
- Seat tilts for access
- Warning lights: Air filter; Alternator; Engine oil pressure; Diagnostic fault indicator; Engine coolant; temperature; Engine oil pressure; Low fuel level; Park brake engaged; Service soon indicator; Transmission temperature; Hi range; Hydraulic filter; Transmission filter; Transmission pressure
- Gauges: Battery voltage; Fuel level; Digital hourmeter/tachometer/diagnostics/service reminder; Transmission oil temperature; Water temperature
- Audible warnings: Engine oil pressure; Transmission pressure; Engine coolant temperature; Low fuel level; Transmission charge pressure; Transmission/hydraulic temperature
Engine
- FPT F5C F5HFL463D*G003
- Tier 4 Final Certified
- Dual DOC
- CEGR
- Automatic fan belt tensioner
- Integral engine oil cooling
- Fuel filter
- Dual element radial seal air cleaner
- 120 amp alternator
- 925 CCA 12-volt battery
- Engine side panel
- Anti-freeze to -34°F
- Pusher fan
- Radiator – Anti-sandblast
Drivetrain
- Dual path infinitely variable, single-lever controlled hydrostatic drive with electronic straight tracking & counter-rotation
- Final drive: Triple reduction; helical gear/planetary decelerator with hydrostatic drive retardation
- Decelerator with hydrostatic drive retardation
- Automatic spring-applied parking brake
- 10 incremental speed settings – Operator preference settings for max speed, shuttle sensitivity and steering sensitivity
Blade
- 52° – 60° variable pitch
- Single lever control for blade lift, angle and tilt
- 90 in (2.29 m) blade 650M LT
- 96 in (2.44 m) blade 650M LT/WT
- 109 in (2.8 m) blade 650M WT
- 120 in (3.0 m) blade 650M LGP
Undercarriage
- Hydraulic track adjusters
- Easy clean track covers
- Case sealed and lubricated track chain
- Permanently lubricated track and carrier rollers
- H.D. track covers
- Track adjuster guard
- Track gauge – 56 in or 68 in
- Track guides – front and rear
- Length of track on ground – 85 in
- High visibility track idler
- Heavy duty track frame, sprocket and mounting pads
Other
- Anti-vandalism package
- Backup alarm
- Hinged grill
- Decelerator
- Final drive seal guard
- Hand throttle
- Horn
- Work lights: 2 front/1 rear
- Master disconnect switch
- Mirror
- Operator’s manual enclosure
- O-ring face seal hydraulic fittings
- Pre-cleaner
- Vertical spin-on hydraulic/filters
- Hydraulics – 3 spool valve
- Fuse circuit protection
- Single key start switch
- Pre-wired for work lights
- Two additional power sources available for heater, air seat or auxiliary 12 volt power port
- Crankcase
- Transmission bottom
Telematics
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
ProCare
- CASE ProCare – Full Machine Protection Factory Warranty (3-yr/3000-hr), Planned Maintenance (3-yr/2000-hr) and SiteWatch telematics
OPTIONAL EQUIPMENT
Operator Environment
- Cab with heater, 22,700 BTU (6.65 kW)/hr air conditioner, defroster, front windshield washer and 2F-1R lights
- 3 in (76 mm) seat belt
- Deluxe air suspension seat
Hydraulics
- 4 spool hydraulic valve for field-installed ripper
Rear Mounted Equipment

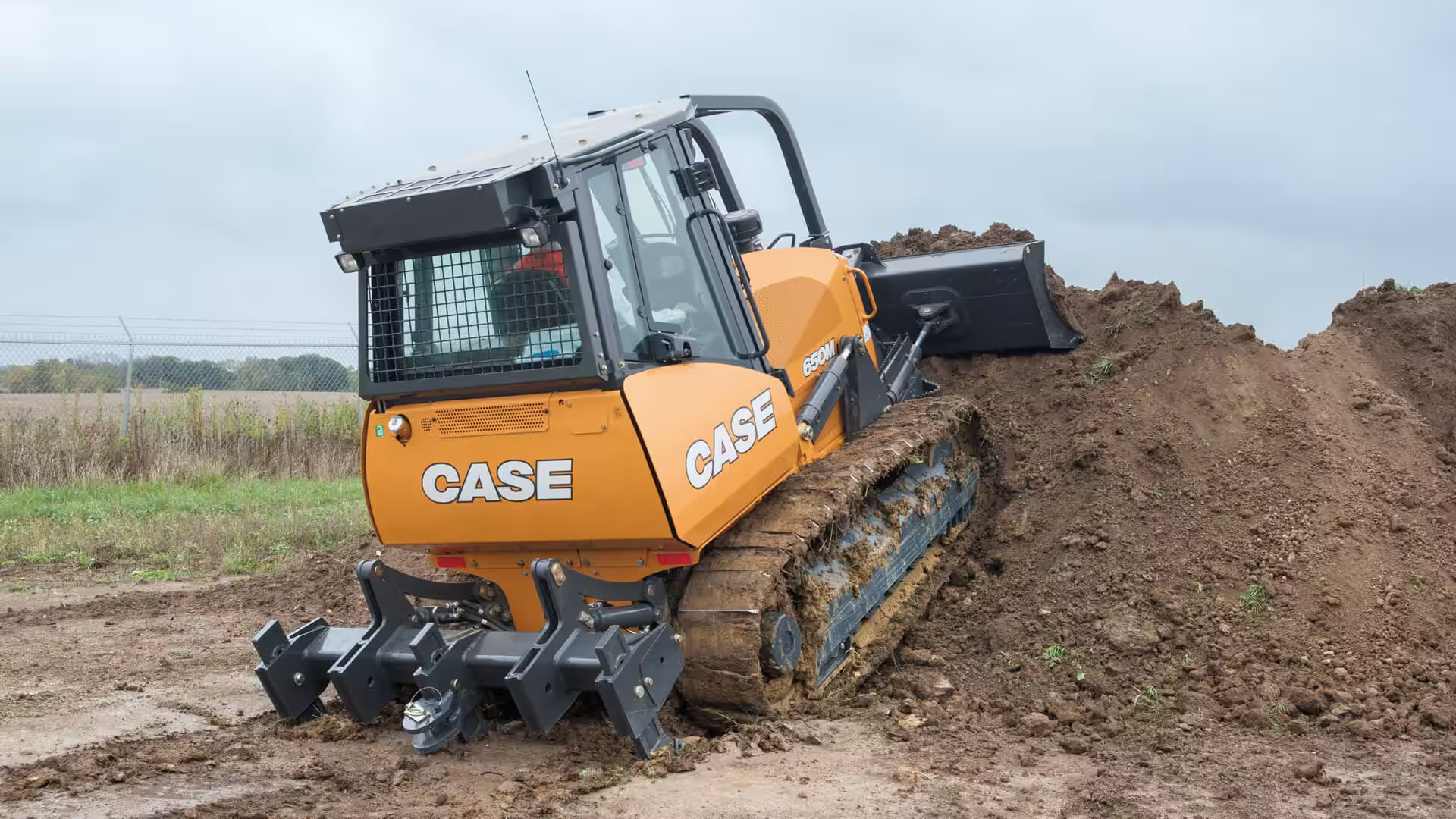

- Ripper, parallelogram 5 slots with 3 shanks
Blades
- 90 in (2.29 m)
- 96 in (2.44 m)
- 109 in (2.77 m)
- 120 in (3.05 m)
Guards
- Brush guards (Sweeps)
- Center rockguard
Screens
- Rear ROPS and cab
- Side ROPS
- Radiator brush screen
Other
- Case Max-Life track
- Cold start aid (Grid Heater)
- Counterweight, front
- Drawbar
- Front pull hook
- Lights – halogen, 2 front, 1 rear for cab or ROPS
- Retrieval hitch
- Special paint
- Turbo precleaner
- Winch drive PTO
- Rear Wiper for cab
- Lights without brush guard
- Lights with brush guard
- Diagnostics check fittings
- Environmental drains
- Lift/Tow decals (Export)
WARRANTY
Base & Extended Warranty Coverage
CASE ProCare applicable on select new heavy machine orders
See your CASE dealer for model availability and timing
Data sheets
650M Specifications
M SERIES BROCHURE
650M BID SPECIFICATIONS
