Excavator 300 X4 HEAVY DUTY
Link-Belt
Link-Belt X4 Heavy Duty excavators are purpose-built and approved for tough applications like demolition, land clearing, heavy-duty excavating, and pipeline work.
Features
Details
Data sheets
Features
Purpose Built
The Link-Belt 300 X4 Heavy Duty excavator is factory equipped with a high-wide and heavy-duty undercarriage with larger components for added durability, strength, and performance. Compared to our standard excavators, these models have an 11-17% wider stance and 40-50% higher ground clearance giving them excellent stability and increased lift capacities to handle the rugged work they were designed for.
RemoteCARE®
RemoteCARE lets you remotely monitor and track machine location, operational performance, working status and periodic maintenance requirements – now at no cost to you. For desktop and mobile!
Standard Warranty
Link-Belt Heavy Duty excavators offer industry-leading warranty coverage.
LBX Company Receives 2022 Contractors’ Top New Products Award
Link-Belt 300 X4 Heavy Duty excavators have received the 2022 Contractors’ Top New Products Award from Equipment Today.
LBX Company Receives Top 100 New Products Award for Heavy Earthmoving Equipment
The Link-Belt 300 X4 Heavy Duty excavator have been awarded a place as Construction Equipment’s Top 100 New Products of 2022.
Details
Specifications
| Operating Weight | 33.2 metric tons |
| Engine Make | Isuzu |
| Engine Model | AQ-6HK1X |
| Net HP | 154 kW |
| Max Dig Depth | 5.73 m |
| Max Working Height | 11.62 m |
| Reach at Ground Level | 10.47 m |
| Max Ground Clearance | 0.65 m |
| Arm Force | 140 kN |
| Bucket Digging Force | 190 kN |
| Bucket Capacity, SAE Heaped | 0.61 – 1.86 m3 |
| Max Travel Speed | 4.6 km/h |
Data sheets

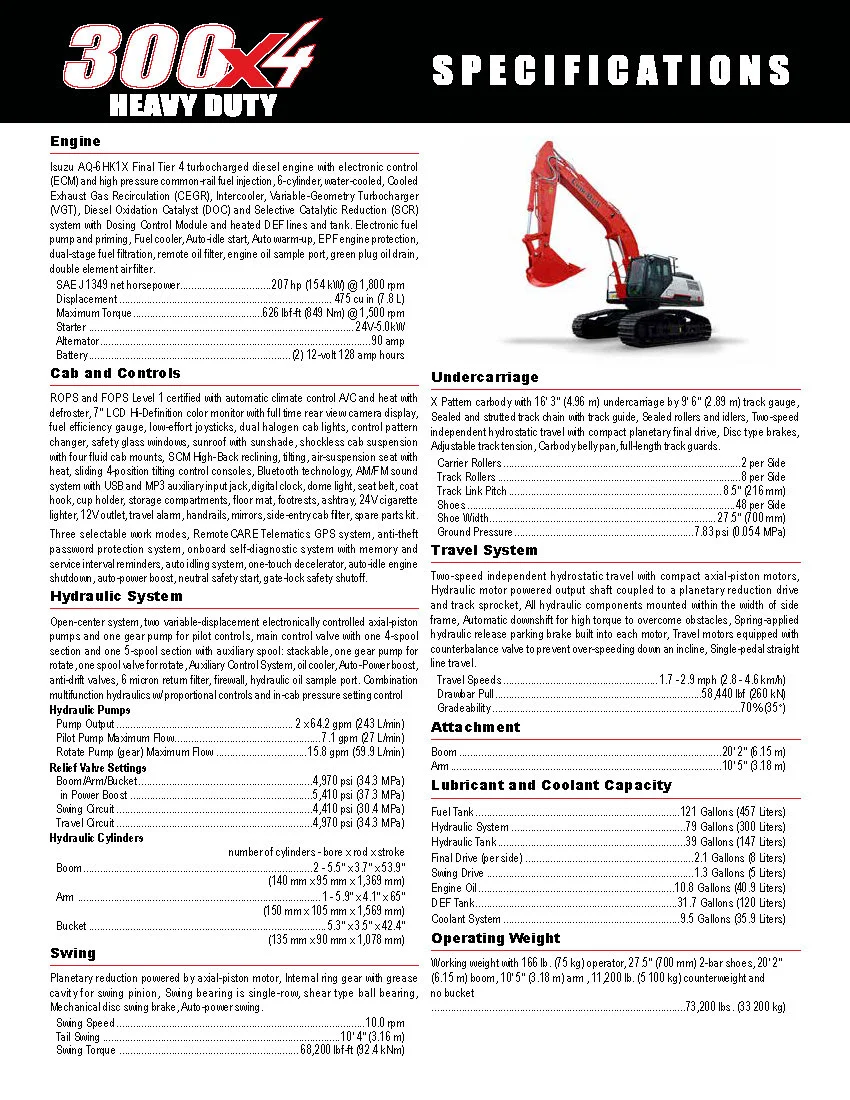

300 X4 Brochure
